 Click here to return to main page Catalogue HobbyWing Platinum-70A-HV-PRO Brushless ESC

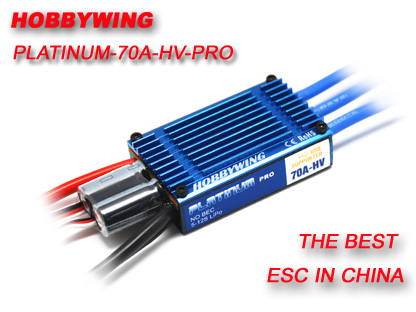

HobbyWing Platinum-70A-HV-PRO Brushless ESC
HobbyWing Platinum-70A-HV-PRO Brushless ESC
Platinum-70A-HV-PRO ESC belongs to Hobbywing's "Platinum" series products line, it is the most significant top-class product for aircraft and helicopter.
Very powerful for 600 class helicopter (Working with 8 or 10 cells Lipo battery)
Very powerful for huge scale aircraft such as F3A
Offer Price: S$129.00 Click to view shopping cart Add this to shopping cart
Features:
  • High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
  • Wide-open heat-sink design to get the best heat dissipation effect.
  • With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
  • Smooth, linear, quick and precise throttle response.
  • Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
  • The output voltage of the built-in BEC is switchable by user programming (5.25V or 6.0V).
  • Perfect governor mode for helicopter.
  • The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box.
  • User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.
Specifications:
  • Model:Platinum-70A-HV
  • Output: Continuous 70A, Burst 105A up to 10 Secs.
  • Input Voltage: 5-12 cells lithium battery or 15-36 cells NIMH battery.
  • BEC: None.
  • Control Signal Transmission: Optically coupled system.
  • Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
  • (BLM: BrushLess Motor)
  • Size: 70mm (L) * 34mm (W) * 16mm (H).
  • Weight: 82g.
Misc Information:
