|   Catalogue HobbyWing (Aircraft & Heli) HobbyWing Platinum-120A-HV-PRO Brushless ESC |
 |

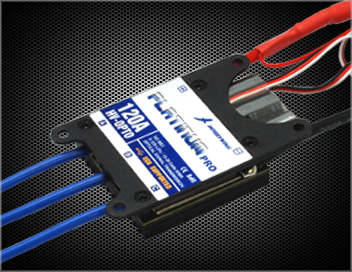

HobbyWing Platinum-120A-HV-PRO Brushless ESC
"Platinum" series ESC has the best performance, it is the top-class product for RC airplane and helicopter.
Suitable for: 600/700 class heli 3D / 5-8kg large scale fixed-wing airplane, 2m F3A or 3D / 35cc gas powered converts to electric powered
Offer Price: S$219.00   |  Features:- High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.
- Anti-spark circuit eliminates sparks when the battery pack is connecting with the ESC.
- Three types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
- Smooth, linear, quick and precise throttle response.
- Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- The throttle signal is transfered through optical/electrical coupled system to avoid electromagnetic interference.
- Perfect governor mode for helicopter.
- Wide-opened heat-sink has the best heat dissipation effect.
- The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.
- User programmable.
- Multiple program methods supported: transmitter stick, Digital LED Program Card, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.
| Specifications:- Output: Continuous 120A, burst 180A up to 10 seconds.
- Input Voltage: 5-12 cells lithium battery or 15-36 cells NiMH battery.
- 1.3 BEC: None.
- Control Signal Transmission: Optical/electrical coupled system.
- Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.
- (BLM = BrushLess Motor)
- Size: 88mm (L) * 55mm (W) * 15mm (H).
- Weight: 125g.
| Misc Information:- Product Code: PL120PRO
- Offer Price: S$219.00
 - Retail Price: S$288.00
- Category: HobbyWing (Aircraft & Heli)
|
