| Catalogue Ducted Fan Unit Himax RTR 69mm Ducted Fan w/Motor HA2825-3600 800g thrust|

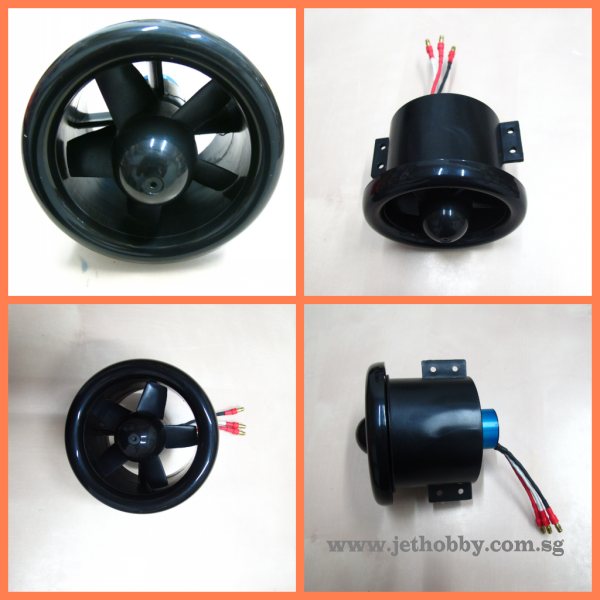

|Himax RTR 69mm Ducted Fan w/Motor HA2825-3600 800g thrust|
The EPF69 ducted fan unit represents a simple method of getting started in electric ducted fan model flying. It’s high
performance makes it an ideal choice for use in medium to fast model jets weighing about 700 to 1300 g. The removable
intake ring enables the ducted fan to be installed inside the model or mounted externally; at external mounting, it improves
the unit’s efficiency.
The rotor of the EPF69 is dynamically balanced at the factory, which means that you can install and use it immediately after
purchase; the difficult task of balancing the rotor is not required.
- RTR high power ducted fan with factory installed motor.
- • All feature high quality Himax brushless motor.
- • Dynamically balanced.
- Rotor Ø: 69 mm, 2.72”
- Length with/ wo inlet ring: 65 / 59 mm, 2.56” / 2.32”
- Unit O.D.: 73 mm, 2.87”
- Inlet ring O.D.: 94 mm, 3.70”
- Weight: 212 g, 7.5 oz w/o inlet ring, 225 g, 7.9 oz with inlet ring
- No. of rotor blades / stator blades: 5 / 4
- Max. rotational speed: 46,000 rpm
- Motor: Himax HA2825-3600
- Battery: 3S LiPo, do not use more than 3S LiPo or 9 NiXX cells!
- Current: 35 Amp
- Input power: approx. 350 Watts
- Thrust: approx. 800 g, 1.76 lbs
| Misc Information:|
- Product Code: EPF69BL
- Retail Price: S$165.00
- Category: Ducted Fan Unit, New Arrivals
