 Click here to return to main page Catalogue Out of stock XERUN-150A-SD Brushless ESC for 1/8 Car (Competition Race)

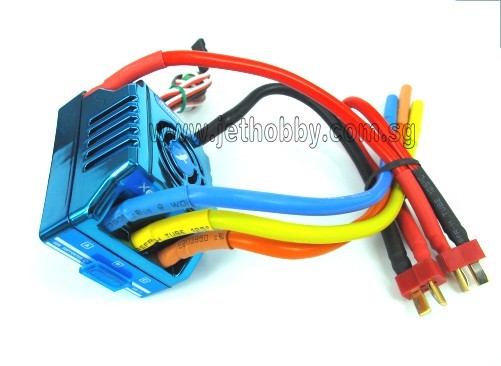

XERUN-150A-SD Brushless ESC for 1/8 Car (Competition Race)
XERUN-150A-SD Brushless ESC for 1/8 Car (Competition Race)
Offer Price: S$135.00 Click to view shopping cart Add this to shopping cart
Features:
  • 1.1 Compatible with all sensorless brushless motors and most of sensored brushless motors such as Novak, LRP and Feigao, etc.
  • 1.2 Excellent start-up, acceleration and linearity features.
  • 1.3 3 running modes (Forward only with brake, Forward/Reverse with brake, Forward/Reverse immediately)
  • 1.4 4 steps of maximum reverse force adjustment.
  • 1.5 Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
  • 1.6 9 start modes (Also called “Punch”) from “very soft (Level 1)” to “very aggressive (Level 9)”.
  • 1.7 Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
  • 1.8 8 steps of timing adjustment by software.
  • 1.9 Built-in switch mode BEC has a powerful output to supply all the electronic equipments.
  • 1.10 Easily program with only one button and compatible with pocket-sized Program Card.
  • 1.11 Firmware can be updated through an USB adapter (Optional equipment).
  • 1.12 Splash proof and dustproof.
  • 1.13 Stable and reliable.
Specifications:
  • 1.1 Output: Continuous current 150A, burst current 950A.
  • 1.2 Input: 6-18 cells NiMH/NiCd or 2-6 cells LiPo.
  • 1.3 BEC Output: 5.75V/3A (Switch mode built-in BEC).
  • 1.4 Resistance: 0.0002 Ohm.
  • 1.5 Motor Supported: Sensorless and sensored brushless motors
  • 1.6 Suitable Brushless Motor:
  • When working with 4 cells Lipo: >= 4.5T (KV<=3000)
  • When working with 6 cells Lipo: >= 6.0T (KV<=2400)
  • The above T number is the value of a 4274 sized motor (Diameter=42mm, Length=74mm)
  • 1.7 Suitable Car: 1/8 Buggy / Truggy / Monster.
  • 1.8 Size: 58mm(L) * 46.5mm(W) * 35mm(H).
  • 1.9 Weight: 105g(Without wires)
Misc Information:
