|   Catalogue HobbyWing (Aircraft & Heli) HobbyWing Platinum-100A-PRO Brushless ESC |
 |

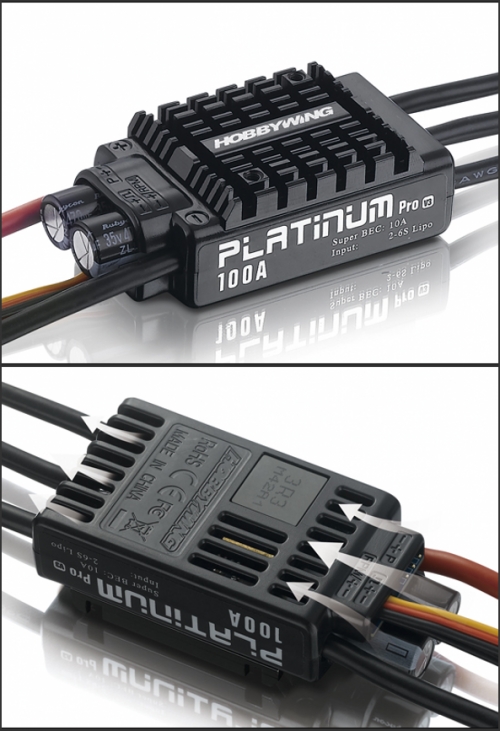

HobbyWing Platinum-100A-PRO Brushless ESC
Platinum-100A-PRO ESC belongs to Hobbywing’s "Platinum" series products line, it is the most significant top-class product for aircraft and helicopter.
1.1 Super powerful for 550 class helicopter
1.2 Very powerful for 600 class helicopter
1.3 Very powerful for large scale aircraft
Offer Price: S$129.00   |  Features:- High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
- Wide-open heat-sink design to get the best heat dissipation effect.
- With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
- Smooth, linear, quick and precise throttle response.
- The output voltage of the built-in BEC is switchable by user programming (5.25V or 6.0V).
- Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- 3.7 Perfect governor mode for helicopter.
- 3.8 The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box.
- 3.9 User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.
| Specifications:- Output: Continuous 100A, burst 150A up to 10 seconds.
- Input Voltage: 2-6 cells lithium battery or 5-18 cells NIMH battery.
- BEC: Switching mode DC-DC regulator. 3A@5.25V or 3A@6V switchable by user progromming.
- Control Signal Transmission: Optically coupled system.
- Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
- (BLM: BrushLess Motor)
- Size: 70mm (L) * 34mm (W) * 16mm (H).
- Weight: 82g.
| Misc Information:- Product Code: PL100APRO
- Manufacturer: Hobbywing
- Offer Price: S$129.00
 - Retail Price: S$149.00
- Category: Hot Deals, HobbyWing (Aircraft & Heli)
|
