 Click here to return to main page Catalogue Charger, New Arrivals Ultra Power UP100AC Quad Multi Balance Charger 4x100W (AC/DC)

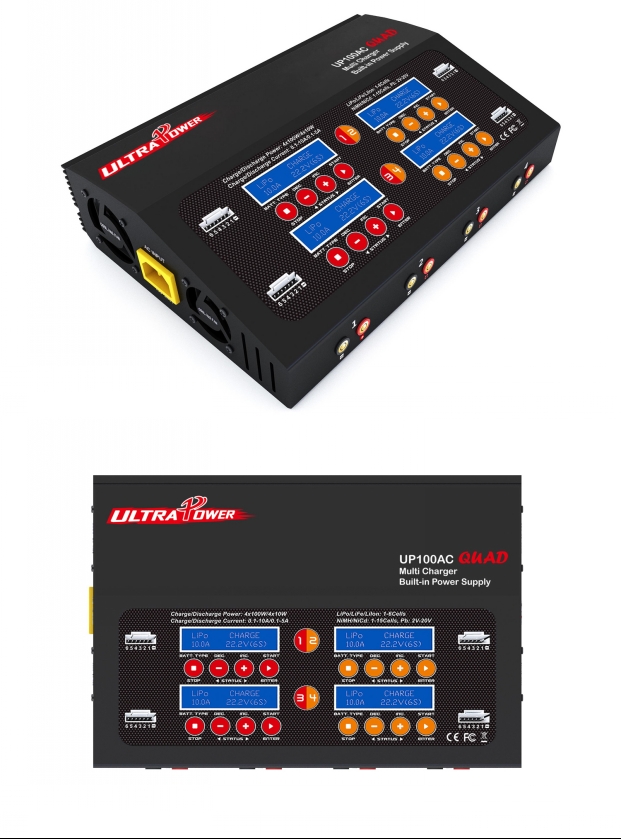

Ultra Power UP100AC Quad Multi Balance Charger 4x100W (AC/DC)
Ultra Power UP100AC Quad Multi Balance Charger 4x100W (AC/DC)
The UP100AC QUAD Charger is a four channels identical and independent 100watt power outputs and built-in power supply, total output is 400 Watts. Each channel is capable of charging all types batteries at up to 10.0 A and discharge at 0.1-5.0A, it include 4sets fan cooling system and an internal sensor for controlling fan speed, internal cell balancers, high contrast LCD displays and important warning and safety function
Price: S$339.00 Click to view shopping cart Add this to shopping cart
Features:
  • Charges 1-6 cell LiPo, LiFe and Li-ION, 1-15 cell NiCd and NiMH and 2-20V lead acid batteries
  • *Fast Charge, Balance Charge and Storage Charge modes for lithium batteries
  • *Automatically controls current rate during charging and discharging process
  • *Four independent 100 watt power outputs charges up to four batteries simultaneously
  • *Four independent balancing ports for lithium batteries
  • *Five user customizable pre-set per output
  • *Four fan cooling system with internal sensor for controlling fan speed
  • *Batteries can be set to automatically Charge/Discharge or Discharge/Charge up to a maximum of 10 cycles
  • *Automatic charge termination if battery temperature gets too high
  • *Temperature probe is required and must be purchased separately
  • *PC-based program can analyze the characteristics of each battery via a USB port, graph of voltage, current and capacity curves with individual voltage of each cell in a lithium pack can be displayed on a PC- *PC-LINK USB adaptor is required and must be purchased separately.
Specifications:
  • Input voltage: AC 100-240V / DC 11.0-18.0V
  • Charge power: 4x100W(400W)
  • Discharge power: 4x10W(40W)
  • Charge current range: 0.1-10.0A
  • Discharge current range : 0.1~5.0A
  • LiIo/LiPo/LiFe cell count: 1~6 series
  • NiCd/NiMH battery cell count: 1 - 15cells
  • Pb battery voltage : 2V~20V (1-10cells)
  • Current drain for balancing LiPo: 300mah/cell
  • Battery data memory: up to 10 data
  • Dimension:294*199*76mm
Misc Information:
  • Product Code: UP100AC QUAD
  • Retail Price: S$339.00
  • Category: Charger, New Arrivals
