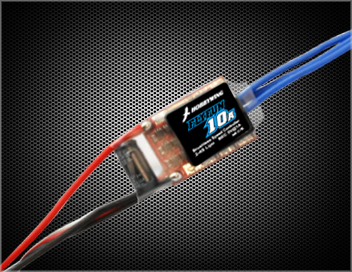

Hobby Wing FlyFun-10A Brushless ESC
Price: S$20.00   |  Features:- Safety Arming Feature: Regardless the Throttle Stick position, the motor will not spin after battery connected. This will prevent any injury happened.
- Throttle Calibration: Throttle range can be configured to provide best throttling linearity, fully compatible with all market available transmitters.
- Programmable Items:
- Brake Settings: brake enabled / brake disabled, default is brake disabled
- Battery Type: Li-xx(Li-ion or Li-poly) / Ni-xx(NiMh or Nicd)，default is Li-xx.
- Low Voltage Protection Mode(Cutoff Mode) : power reducing / power cutoff, default is power reducing.
- Low Voltage Protection Threshold(Cutoff Threshold) : low / medium / high, default is medium cutoff voltage.
- For Li-xx battery，number of battery cells are judged automatically，low / medium / high cutoff voltage for each cell are: 2.6V/2.85V/3.1V. For example: 3 Cells Li-Poly, when medium cutoff voltage is set, the cutoff voltage is: 2.85*3=8.55V.
- For Ni-xx battery, low / medium / high cutoff voltages are 0/45%/60% of the startup voltage. (0% means the low voltage cutoff function is disabled).
- Startup mode: normal / soft / super-soft, default is normal startup.
- Timing: low / medium / high, default is medium timing.
- Full Protection Features: Low-voltage cutoff protection / over-heat protection / throttle signal lost protection.
| Specifications:- 1.1 Output: Continues 10A, Burst 12A up to 10 Secs.
- Input Voltage: 2 – 4s Lipo or 5 -12 cells NiCd/NiMH
- BEC (Battery Elimination Circuit) Output: linear mode BEC 1A
- Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
- Size: 17mm*27mm*6mm(width*length*height)
- Weight: 9g
| Misc Information:- Product Code: HWPT10A
- Retail Price: S$20.00
- Category: HobbyWing (Aircraft & Heli)
|
